2684 - mechanism SYN-SL

Line:

MECHANISMS

Type:

Collection:

Components

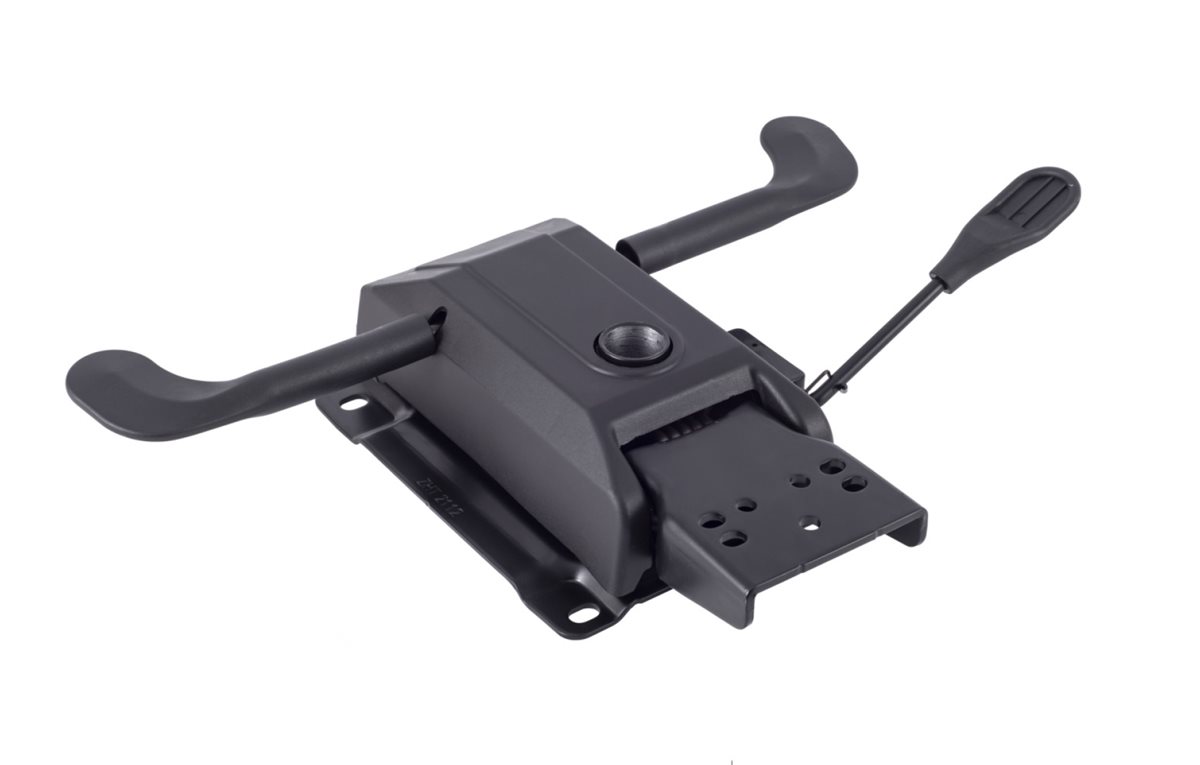

Synchronous mechanism with automatic adjustment of counterbalance force.

Synchronous mechanism with automatic adjustment of counterbalance force. During synchronous movement, there is a smooth transition between the seat and backrest angles at a 1:4 ratio. Automatic adjustment of counterbalance force enhances the comfort of dynamic sitting and requires no manual adjustment. Safety function to prevent the backrest from returning (known as anti-shock); the anti-shock system engages the mechanism only after the forces on the backrest are balanced against the applied pressure. 4 locking positions. Seat height adjustment. Tilt lock control – seat angle range is 0° ~ 5.0° and backrest angle is 90° ~ 110°. Seat depth adjustment control with a range of 0 ~ 58 mm and 5 locking positions.Synchronous mechanism with automatic adjustment of counterbalance force. During synchronous movement, there is a smooth transition between the seat and backrest angles at a 1:4 ratio. Automatic adjustment of counterbalance force enhances the comfort of dynamic sitting and requires no manual adjustment. Safety function to prevent the backrest from returning (known as anti-shock); the anti-shock system engages the mechanism only after the forces on the backrest are balanced against the applied pressure. 4 locking positions. Seat height adjustment. Tilt lock control – seat angle range is 0° ~ 5.0° and backrest angle is 90° ~ 110°. Seat depth adjustment control with a range of 0 ~ 58 mm and 5 locking positions.
